Flexible Fluorine (ETFE) Resin Tubing (PVC Type)

Multi-Purpose / Chemical Resistance Tube | Single-layer teflon tubing is hard and easy to break. Our Flexible Fluorine (ETFE) Resin Tubing is an alternative tubing for a teflon tubing.

Enquiry Request

Specifications

Model Number	Standard Length	I.D. $\times$ O.D.	Working Pressure	Working Pressure	Minimum Bend Radius
			20 $^{\circ}$ C	20 $^{\circ}$ C	20 $^{\circ}$ C
	m	mm	MPa	Bar	mm
E-SJV-6 $\times$ 9	20	6 $\times$ 9	0 – 0.3	0 – 3	45
	100
E-SJV-8 $\times$ 12	20	8 $\times$ 12			55
	100

Temperature Range : 0 – 70 $^{\circ}$ C (32 $^{\circ}$ F – 158 $^{\circ}$ F)
Color : Clear

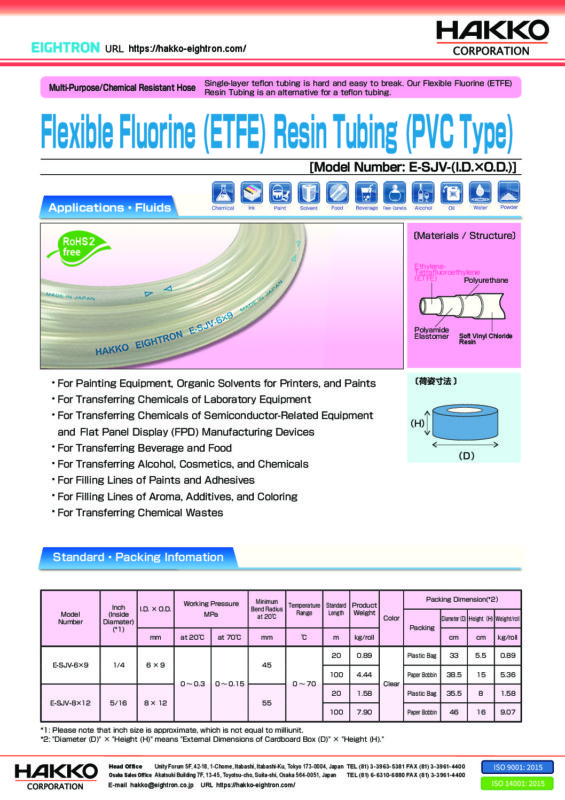

Download
