Features
-
- Gun body
Magnesium gun body (378g) with PTFE coating prevents from stains on its surface and for easy cleaning. All new ergonomic gun design ensures incredible handling and balance.
- Gun body
-
- Stainless steel fluid passage, needle and air inlet
The fluid passage, needle and air inlet are made of stainless steel, compatible with all types of paints including waterborne.
- Stainless steel fluid passage, needle and air inlet
-
- Air cap
NEPTUNE-C Air cap（777/797）for Taperd Edge
NEPTUNE-L Air cap（805MT2/807MT2）for Taperd Edge & Blunt Edge
-
- Needle adjusting knob
Easy to mount the needle adjusting knob by changing the shape of the screw threads
- Needle adjusting knob
-
- Snap ring
Easy identification of guns usage by 4 colors snap-ring
- Snap ring

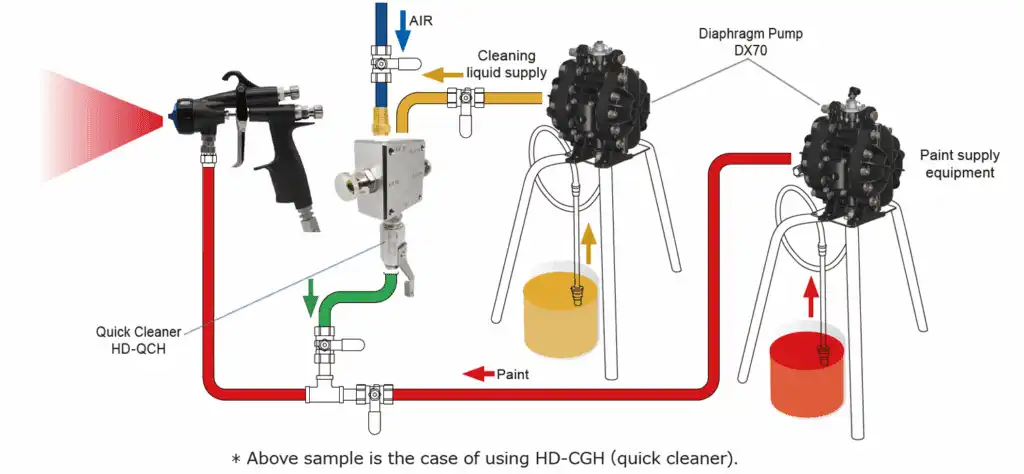

Connection Illustration (sample)
Specifications
| Model | Atomization | Air Cap | Tip Size (Φmm) |
Pattern Range (mm) |
Air consumption (L/min) |
Delivery (mL/min) |
Gun Body Weight |
Air inlet |
Fluid inlet |
| NEPTUNE-C | Conventional | 777 | 11(1.1mm) 14(1.4mm) 16(1.6mm) |
360 | 373~418 | 0.3~0.35 | 378g |
G1/4 |
G3/8 |
| 797 | 330 | ||||||||
| NEPTUNE-L | LVMP | 805MT2 | 220 | 236~275 | 0.2~0.25 | 350g | |||
| 807MT2 | 280 |
