The T-AGB gun is a compact automatic gun utilizing the DeVilbiss air cap known as the high performance and high quality. (Length 92mm, weight 270g - 570g)
ซื้อสินค้า

Enquiry Request

Line@
Messenger

Loading

Overview

Applications

  • It can be attached to all types of automatic painting machines, but it is especially suited for measurably restricted areas.
  • It can also be used with painting robots. (It can also easily handle switching the pattern width and changes with the flow rate within one program)

Features

  • Gun Body
    Select from either aluminum or stainless steel for the gun body, and in addition, all metal parts can be changed to stainless steel or high corrosion resistant stainless steel for special application.
  • Fluid tips
    Fluid tip is made of stainless steel as a standard but it is also available with nitralloy and tungsten carbide.
  • Needles
    The standard material for the needle is stainless steel but it is also available with abrasion proof tungsten carbide.
  • How to Use
    The T-AGB gun does not have an air valve mechanism inside the gun, so it can be used as an air bleeder type or please pay attention to on/off timing of air and fluid.
    *Please set the cylinder air (CYL) pressure to 3.5kgf/cm² or higher.

For T-AGB

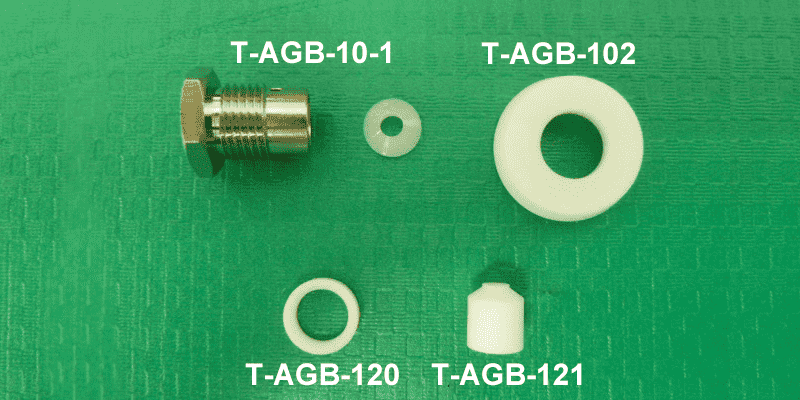

T-AGB-10-1 / T-AGB-102 / T-AGB-120 / T-AGB-121

Specifications
Air capsParts numberTypical ApplicationsFeatures
62MB-4039-62Maintenance painting / EnamelsFor high flow rates
64MB-4039-64Enamels / high viscous liquidLow and medium pressure type
67MB-4039-67EnamelsHigh pressure type
110AV-242-110Marking / Small spotsFor round pattern
265AV-1239-265RAutomotives / MetallicsFinest atomization
704AV-1239-704Electronics / Fine finish furniture and wood / EnamelsMedium pressure type
705AV-1239-705Hot spray / Fine finishingLow pressure type
765AV-1239-765Automotives / Fine finishingFinest atomization
77731767-777Automotives / MetallicsFinest atomization
797AV-1239-797Automotives / Metallics / AdhesivesFinest atomization
Air Cap No.Air consumption and Air inlet pressure
L/min(MPa / kgf/m²)		Spray Pattern
(Distance18cm)		Combination
fluid tips
62302(0.21/2.1)367(0.27/2.8)440(0.34/3.5)18 ～ 22AC
64314(0.21/2.1)386(0.27/2.8)459(0.34/3.5)30 ～ 36D
67462(0.34/3.5)532(0.41/4.2)608(0.48/4.9)25 ～ 30EE
11095(0.21/2.1)118(0.27/2.8)137(0.34/3.5)–FX,G
265483(0.34/3.5)577(0.41/4.2)636(0.48/4.9)23 ～ 36E,FF,FX,G
704283(0.21/2.1)347(0.27/2.8)414(0.34/3.5)18 ～ 23E,FF,FX,G
705202(0.14/1.4)230(0.21/2.1)258(0.27/2.8)18 ～ 23FF,FX,G
765412(0.34/3.5)540(0.48/4.9)666(0.62/6.3)23 ～ 36E,FF,FX,G
777483(0.34/3.5)577(0.41/4.2)636(0.48/4.9)23 ～ 36E,FF,FX
797493(0.34/3.5)580(0.41/4.2)664(0.48/4.9)23 ～ 36E,FF,FX,G
Air caps 62
Air consumption and Air inlet pressure L/min(MPa / kgf/m)Typical Applications 302(0.21/2.1)
367(0.27/2.8)
440(0.34/3.5)
Spray Pattern (Distance18cm) 18 ～ 22
Combination fluid tips AC
Air caps 64
Air consumption and Air inlet pressure L/min(MPa / kgf/m)Typical Applications 314(0.21/2.1)
386(0.27/2.8)
459(0.34/3.5)
Spray Pattern (Distance18cm) 30 ～ 36
Combination fluid tips D
Air caps 67
Air consumption and Air inlet pressure L/min(MPa / kgf/m)Typical Applications 462(0.34/3.5)
532(0.41/4.2)
608(0.48/4.9)
Spray Pattern (Distance18cm) 25 ～ 30
Combination fluid tips EE
Air caps 110
Air consumption and Air inlet pressure L/min(MPa / kgf/m)Typical Applications 95(0.21/2.1)
118(0.27/2.8)
137(0.34/3.5)
Spray Pattern (Distance18cm) –
Combination fluid tips FX,G
Air caps 265
Air consumption and Air inlet pressure L/min(MPa / kgf/m)Typical Applications 483(0.34/3.5)
577(0.41/4.2)
636(0.48/4.9)
Spray Pattern (Distance18cm) 23 ～ 36
Combination fluid tips E,FF,FX,G
Air caps 704
Air consumption and Air inlet pressure L/min(MPa / kgf/m)Typical Applications 283(0.21/2.1)
347(0.27/2.8)
414(0.34/3.5)
Spray Pattern (Distance18cm) 18 ～ 23
Combination fluid tips E,FF,FX,G
Air caps 705
Air consumption and Air inlet pressure L/min(MPa / kgf/m)Typical Applications 202(0.14/1.4)
230(0.21/2.1)
258(0.27/2.8)
Spray Pattern (Distance18cm) 18 ～ 23
Combination fluid tips FF,FX,G
Air caps 765
Air consumption and Air inlet pressure L/min(MPa / kgf/m)Typical Applications 412(0.34/3.5)
540(0.48/4.9)
666(0.62/6.3)
Spray Pattern (Distance18cm) 23 ～ 36
Combination fluid tips E,FF,FX,G
Air caps 777
Air consumption and Air inlet pressure L/min(MPa / kgf/m)Typical Applications 483(0.34/3.5)
577(0.41/4.2)
636(0.48/4.9)
Spray Pattern (Distance18cm) 23 ～ 36
Combination fluid tips E,FF,FX
Air caps 797
Air consumption and Air inlet pressure L/min(MPa / kgf/m)Typical Applications 493(0.34/3.5)
580(0.41/4.2)
664(0.48/4.9)
Spray Pattern (Distance18cm) 23 ～ 36
Combination fluid tips E,FF,FX,G

Air Cap, Fluid Tip Selection

ApplicationsCodeFluid tip size (mm)Parts number
General material and for corrosive liquidNitralloyTungsten carbide
For corrosive liquidAbrasive materialEnamels
Low flow rateG0.7AV-651-G
For finishingFX1.1AV-651-FX
For finishingFF1.4AV-651-FFAV-611-FFAV-617-FF
For high speed work / maintenance paintE1.8AV-651-EAV-611-DEAV-617-DE
For maintenance paint / EnamelsD2.2AV-651-DAV-611-DAV-617-D
Maintenance paint / High viscous liquid / EnamelsAC2.8 AV-611-ACAV-617-AC
ApplicationsFor finishing
CodeFX
Fluid tip size (mm)0.7
1. Parts number
1.1. General material and for corrosive liquid
For corrosive liquidAV-651-G
1.2. Nitralloy
Abrasive material–
1.3. Tungsten carbide
Enamels–
ApplicationsFor finishing
CodeFX
Fluid tip size (mm)1.1
1. Parts number
1.1. General material and for corrosive liquid
For corrosive liquidAV-651-FX
1.2. Nitralloy
Abrasive material–
1.3. Tungsten carbide
Enamels–
ApplicationsFor finishing
CodeFF
Fluid tip size (mm)1.4
1. Parts number
1.1. General material and for corrosive liquid
For corrosive liquidAV-651-FF
1.2. Nitralloy
Abrasive materialAV-611-FF
1.3. Tungsten carbide
EnamelsAV-617-FF
ApplicationsFor high speed work / maintenance paint
CodeE
Fluid tip size (mm)1.8
1. Parts number
1.1. General material and for corrosive liquid
For corrosive liquidAV-651-E
1.2. Nitralloy
Abrasive materialAV-611-DE
1.3. Tungsten carbide
EnamelsAV-617-DE
ApplicationsFor maintenance paint / Enamels
CodeD
Fluid tip size (mm)2.2
1. Parts number
1.1. General material and for corrosive liquid
For corrosive liquidAV-651-D
1.2. Nitralloy
Abrasive materialAV-611-D
1.3. Tungsten carbide
EnamelsAV-617-D
Applications Maintenance paint / High viscous liquid / Enamels
Code AC
Fluid tip size (mm) 2.8
1. Parts number
1.1. General material and for corrosive liquid
For corrosive liquid –
1.2. Nitralloy
Abrasive material AV-611-AC
1.3. Tungsten carbide
Enamels AV-617-AC
Fluid tip size (mm)Parts number (Needles)
Stainless SteelTungsten carbide
0.7T-JGA-402-G
1.1T-JGA-402-FZ
1.4T-JGA-402-FZT-JGA-409-FF
1.8T-JGA-402-ET-JGA-409-DEEE
2.2T-JGA-402-DEXT-JGA-409-D
2.8 T-JGA-409-AC
Download
Catalogue
Manual
Partslist
T-AGB Manual EN
T-AGB Parts List EN
